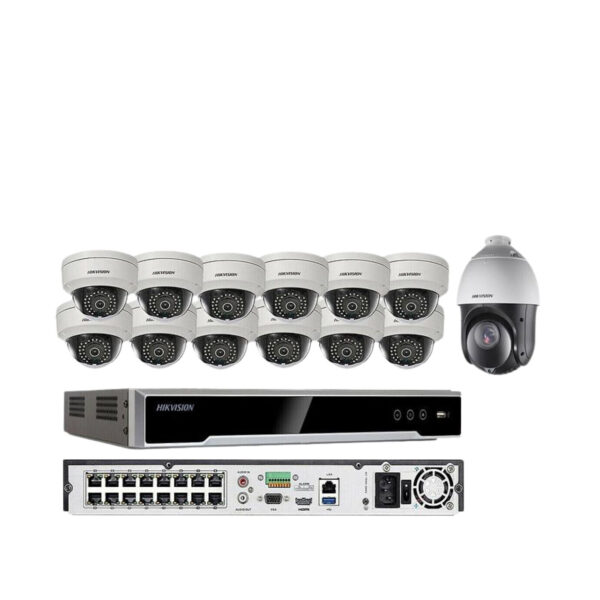

This listing includes:
- CAMERA QUANTITY (DS-2CD1123G0-I): 4;6;8;10;12;14;16
- HARD DRIVE OPTION FOR RECORDER DS-7616NI-Q2/16P: NO HARD DRIVE;2TB;4TB;8TB;10TB;12TB;16TB
DS-2CD1123G0-I
2 MP Fixed Dome Network Camera
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to DWDR technology
- Water and dust resistant (IP67), vandal proof (IK10)
- EXIR 2.0: advanced infrared technology with long IR range
- Camera
- Image Sensor1/2.8″ progressive scan CMOS
- Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
- Shutter Speed1/3 s to 1/100, 000 s
- Slow ShutterYes
- Day &NightIR cut filter
- Wide Dynamic RangeDigital WDR
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 70°
- DNR3D DNR
- Lens
- Lens2.8 mm, 4 mm, 6 mm
- Auto-IrisNo
- ApertureF2.0
- FocusNo
- FOV2.8 horizontal FOV 114°, vertical FOV 62°, diagonal FOV 135°,4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°,6 mm, horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
- Lens MountM12
- Illuminator
- IR RangeUp to 30 m
- Wavelength850 nm
- Video
- Max. Resolution1920 × 1080
- Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Video Bit Rate32 Kbps to 8 Mbps
- Smart Feature-Set
- Region Of Interest1 fixed region for main stream and sub-stream
- Image
- Image EnhancementBLC, 3D DNR
- Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night SwitchAuto, scheduled
- Main Stream Max. Frame Rate50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream Max. Frame Rate50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous Live ViewUp to 6 channels
- User/HostUp to 32 users,3 levels: Administrator, Operator, and User
- ClientiVMS-4200, Hik-Connect, iVMS-5200
- Web BrowserIIE7+, Chrome18-42, Firefox5.0+, Safari5.02+
- Alarm TriggerMotion detection, video tampering alarm, illegal login
- Interface
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Compression Standard
- H.264+Main stream supports
- H.265+Main stream supports
- General
- Firmware Version5.5.2
- General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
- Startup And Operating Conditions-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
- MaterialMetal & Plastic
- DimensionsCamera: Ø 111 mm × 82.4 mm ( 4.4″ × 3.2″),With package: 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
- WeightCamera: Approx. 410 g (0.9 lb.),With package: Approx. 610 g (1.3 lb.)
- Power Consumption And Current12 VDC, 0.4 A, Max: 5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
- Interface ProtectionIP67, IK10,TVS 2000V lightning protection, surge protection and voltage transient protection
DS-2DE4425IW-DE
4 MP 25X Powered by DarkFighter IR Network Speed Dome
- High quality imaging with 4 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 25x optical zoom allows for closer viewing of subjects in expansive areas
- Up to 100m IR range ensures safety at night
- Water and dust resistant (IP66)
- Lens
- FOVHorizontal field of view: 59.5° to 2.6° (Wide-Tele),Vertical field of view: 35.7° to 1.5° (Wide-Tele),Diagonal field of view: 66.6 to 3.0° (Wide-Tele)
- Zoom SpeedApprox. 3.6 s (optical lens, wide-tele)
- Working Distance10 mm to 1500 mm (wide-tele)
- Aperture RangeF1.6 to F3.5
- Focal Length4.8 mm to 120 mm, 25× optical zoom
- Image
- Image EnhancementHLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
- Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Max. Resolution2560 × 1440
- Main Stream50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Network
- Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users,3 levels: Administrator, Operator and User
- ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
- Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
- Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
- Interface
- Audio Input1-ch audio input
- Audio Output1-ch audio output
- Network Interface1 RJ45 10 M/100 M Ethernet, PoE+ (802.3 at, class4)
- Compression Standard
- H.264+Support
- H.265+Support
- H.264 TypeBaseline Profile/Main Profile/High Profile
- Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
- H.265 TypeBaseline Profile/Main Profile/High Profile
- Video Bitrate32 Kbps to 16384 Kbps
- Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
- Audio BitrateG.711alaw/G.711ulaw: 64 Kbps,G.722.1/G.726: 16 Kbps,MP212/PCM: 32 Kbps/64 Kbps/128 Kbps
- SVCSupport
- Camera Module
- Image Sensor1/2.5″ progressive scan CMOS
- Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001Lux @(F1.6, AGC ON),0 Lux with IR
- White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
- GainAuto/Manual
- Shutter Time50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
- Day & NightIR Cut Filter
- Digital Zoom16×
- Privacy Mask24 programmable privacy masks
- Focus ModeAuto/Semi-automatic/Manual
- WDR120 dB WDR (not supported by full frame rate)
- Supplement Light
- IR Distance100 m
- Smart IRSupport
- PTZ
- Movement Range (Pan)360° endless
- Pan SpeedConfigurable, from 0.1°/s to 80°/s, ,Preset speed: 80°/s
- Movement Range (Tilt)From -15° to 90° (auto-flip)
- Tilt SpeedConfigurable, from 0.1°/s to 80°/s,Preset Speed: 80°/s
- Proportional ZoomSupport
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-Off MemorySupport
- Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- 3D PositioningSupport
- PTZ Status DisplaySupport
- Preset FreezingSupport
- Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
- Smart Features
- Basic Event DetectionMotion Detection, Video Tampering Detection, Exception
- Smart DetectionIntrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
- Smart RecordANR (Automatic Network Replenishment), Dual-VCA
- ROIMain stream, sub-stream and third stream respectively support four fixed areas.
- General
- MaterialADC 12, PC+10% GF
- DimensionsΦ 164.5 mm × 290 mm (Φ 6.48″ × 11.42″)
- WeightApprox. 2 kg (4.41 lb)
- Protection LevelIP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Power
12 VDC, 2.0 A and PoE (802.3 at), 42.5 to 57 VDC, 0.6 A, class4
Max.: 18 W, including max. 7W for IR
- Working Temperature-30°C to 65°C (-22°F to 149°F)
- Working Humidity≤ 90%
